Visualization of TYCHO data

To visualize the results of a TYCHO simulations PARAVIEW in combination with the VTK output is not a bad starting point. PARAVIEW can be obtained from
http://www.paraview.org/paraview/resources/software.htmlhttp://www.paraview.org/paraview/resources/software.html for Linux, Windows and MacOS platforms. Some Linux distributions,like FEDORA or UBUNTU, provide repository packages for PARAVIEW. In the Figs. 6.1 and 6.2 exemplory visualizations of a TYCHO simulations with PARAVIEW and AMIRA are shown.

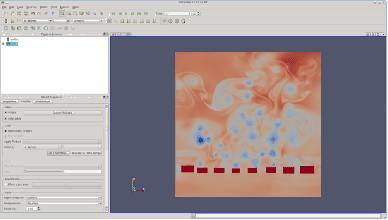

Figure 6.1: TYCHO simulation output visualized with PARAVIEW.
\includegraphics[width=0.7\textwidth]{snapshot1.eps}

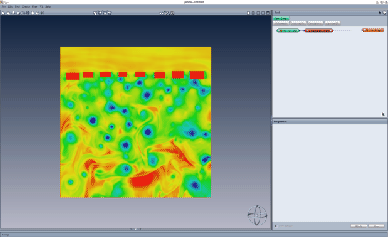

Figure 6.2: TYCHO simulation output visualized with AMIRA.
\includegraphics[width=0.7\textwidth]{snapshot2.eps}
